Lab 4: Activity Recognition with ML and IMU

This is lab, we will be collecting acceleration data from IMU in XIAO nrf board for specific action, then use the data we collected to train a machine learning model to predict the action we perform.

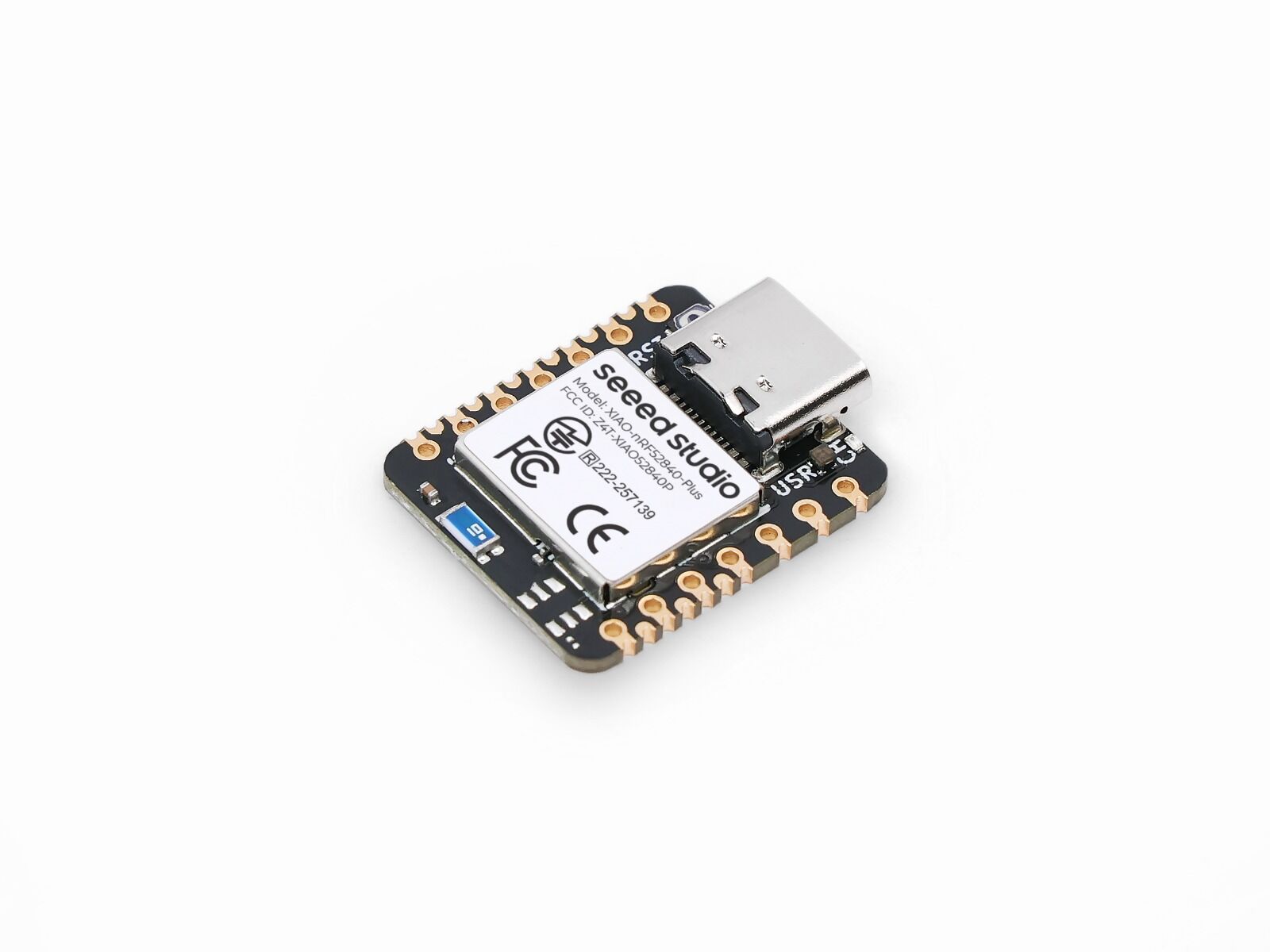

board
XIAO NRF board has a built in IMU for us to use to collect IMU information

As a start, we will only be collecting 2 action: punch and flex.

flexpuncg
An indication of both action

We start by first program the XIAO nrf board to bluetooth forcasting mode to keep collect the IMU data, then use a python script to capture the IMU information. We will collect it twice to get both actions, and each action, we will perform the action 10 times.

We will save those actions into 2 .csv file.

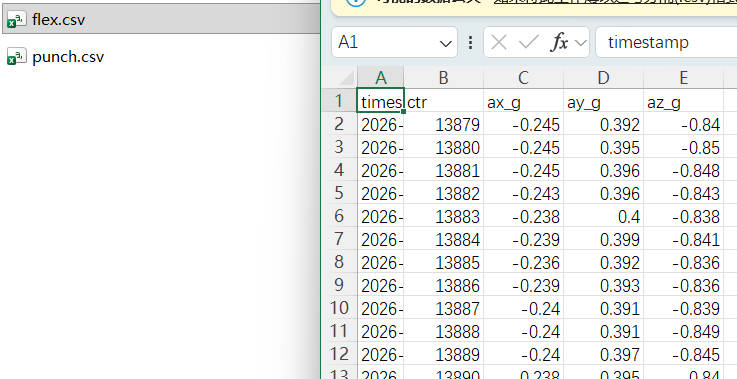

csv
csv files and what's inside

We can visualize those data's behavior below.

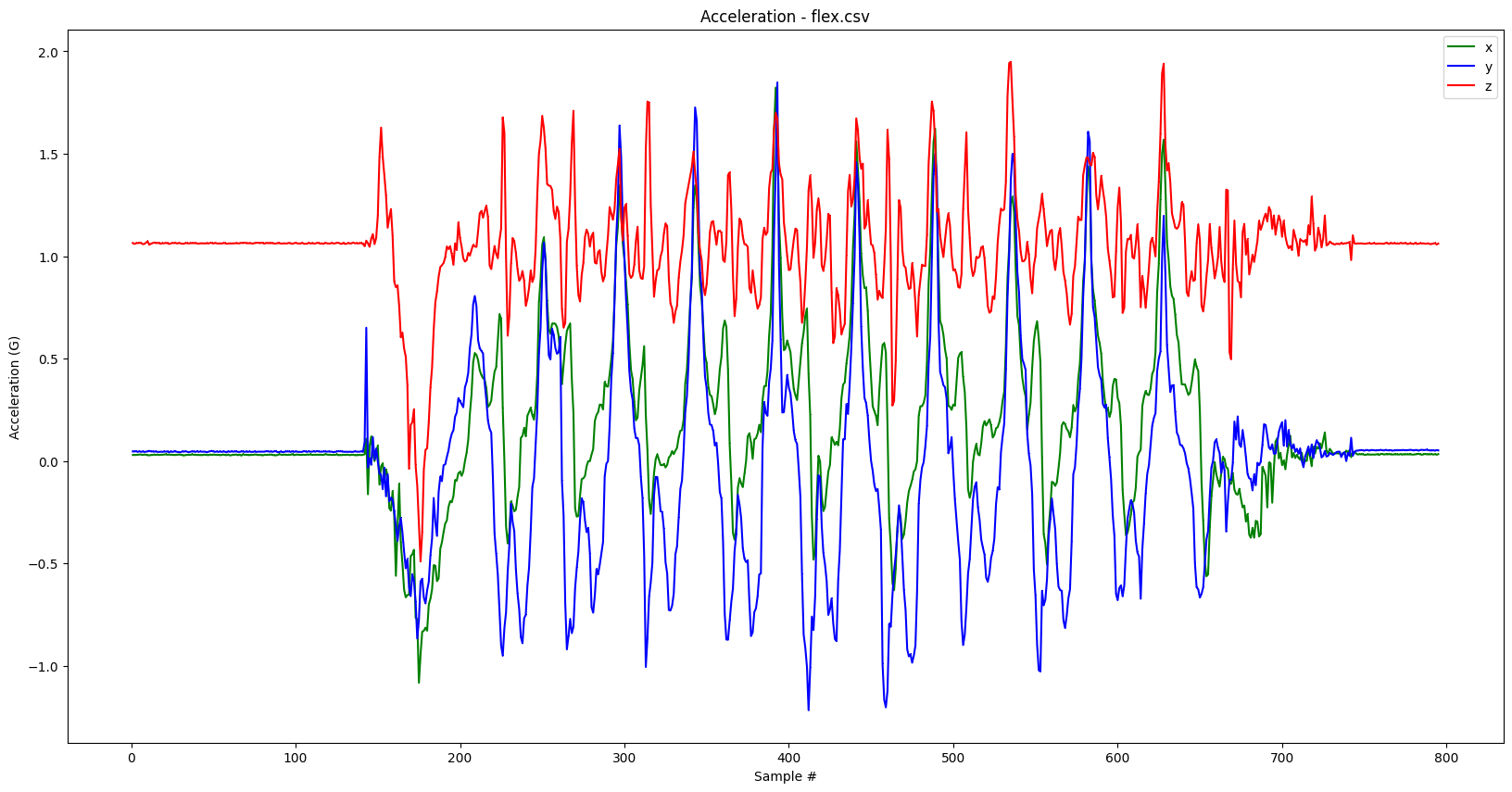

punch

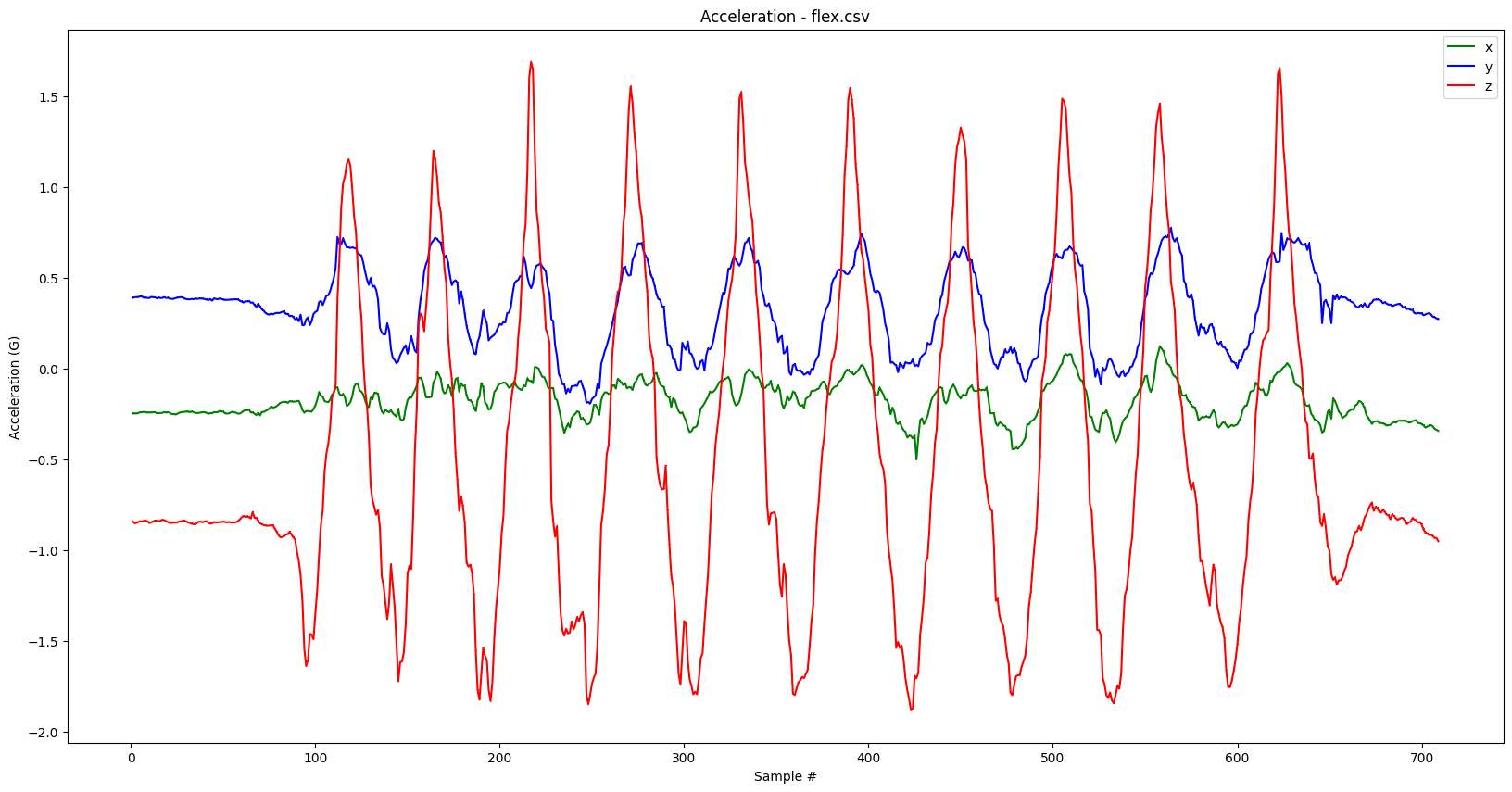

Flex data visualization
flex
Punch data visualization

With those action data, we can train a very simple multi-layer neural network. We will have input layer - 20 hidden neurons - 10 hidden neurons - output layer. The training loss curve are show below.

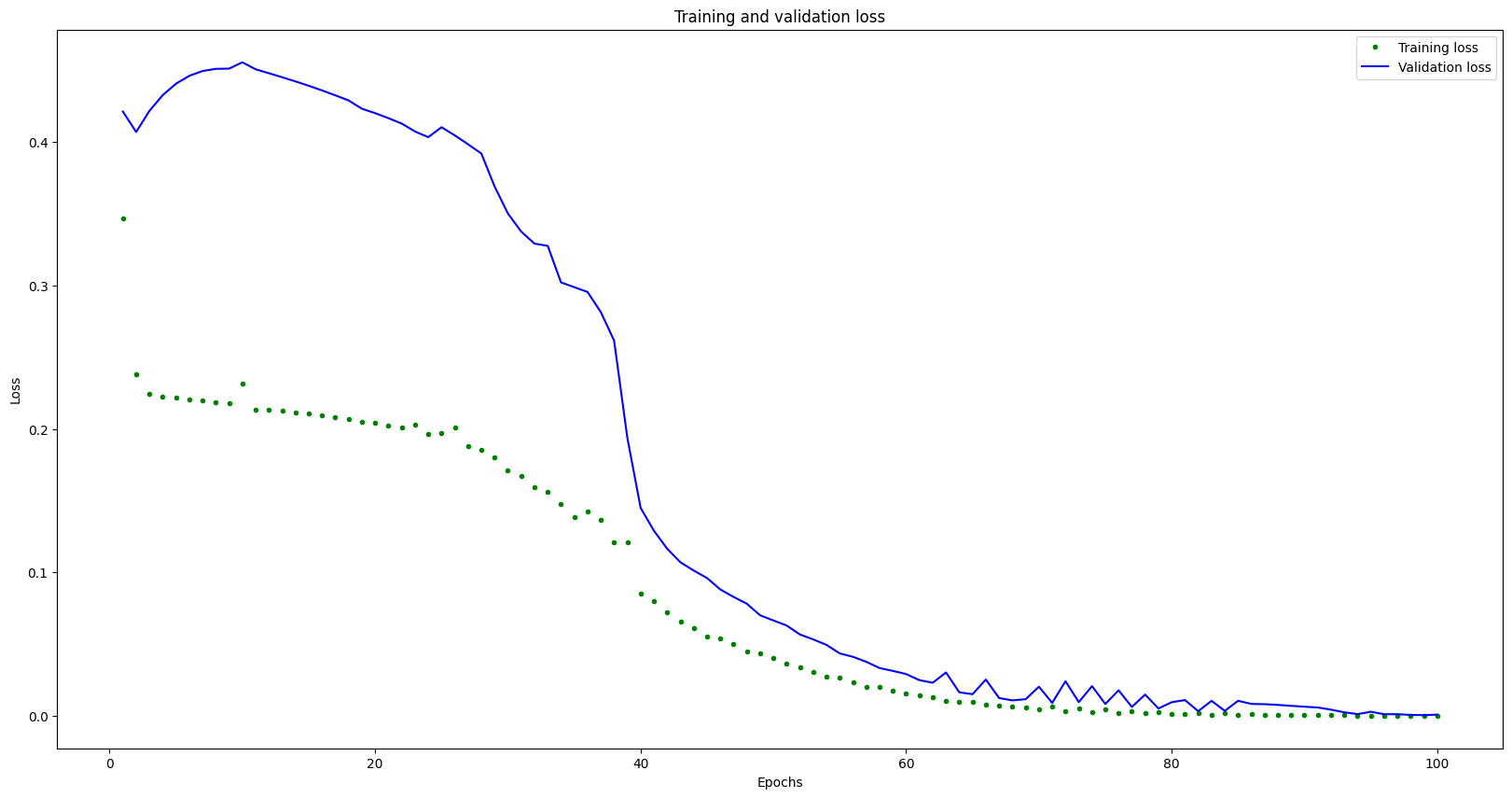

loss
Loss Curve of Training

We will export the training result as a header file called: model.h. We can import this header file to IMU_classifier example code provided by the LSM6DS3 library for action inference. below are some result. I noticed that for punch, it is usually very accurately detected, but for flex, the accuracy is very low. The result might be due to the limited dataset (10) I have. The first box is the punch confidence level, and second box is flex confidence level.

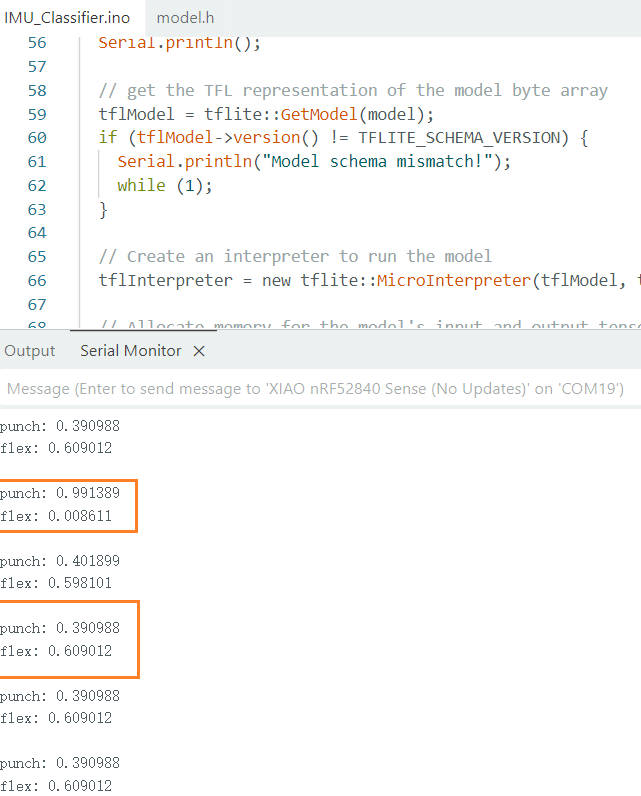

pred
Predication of actions

This is just the first phase of this lab, next week, we will add more on top of what we currently have to include more actions.

In the following week, we continue to extend the expperiment on 5 actions. they are: go down stairs, sitting, standing, go up stairs, and walking. As show below, the data collected visualization

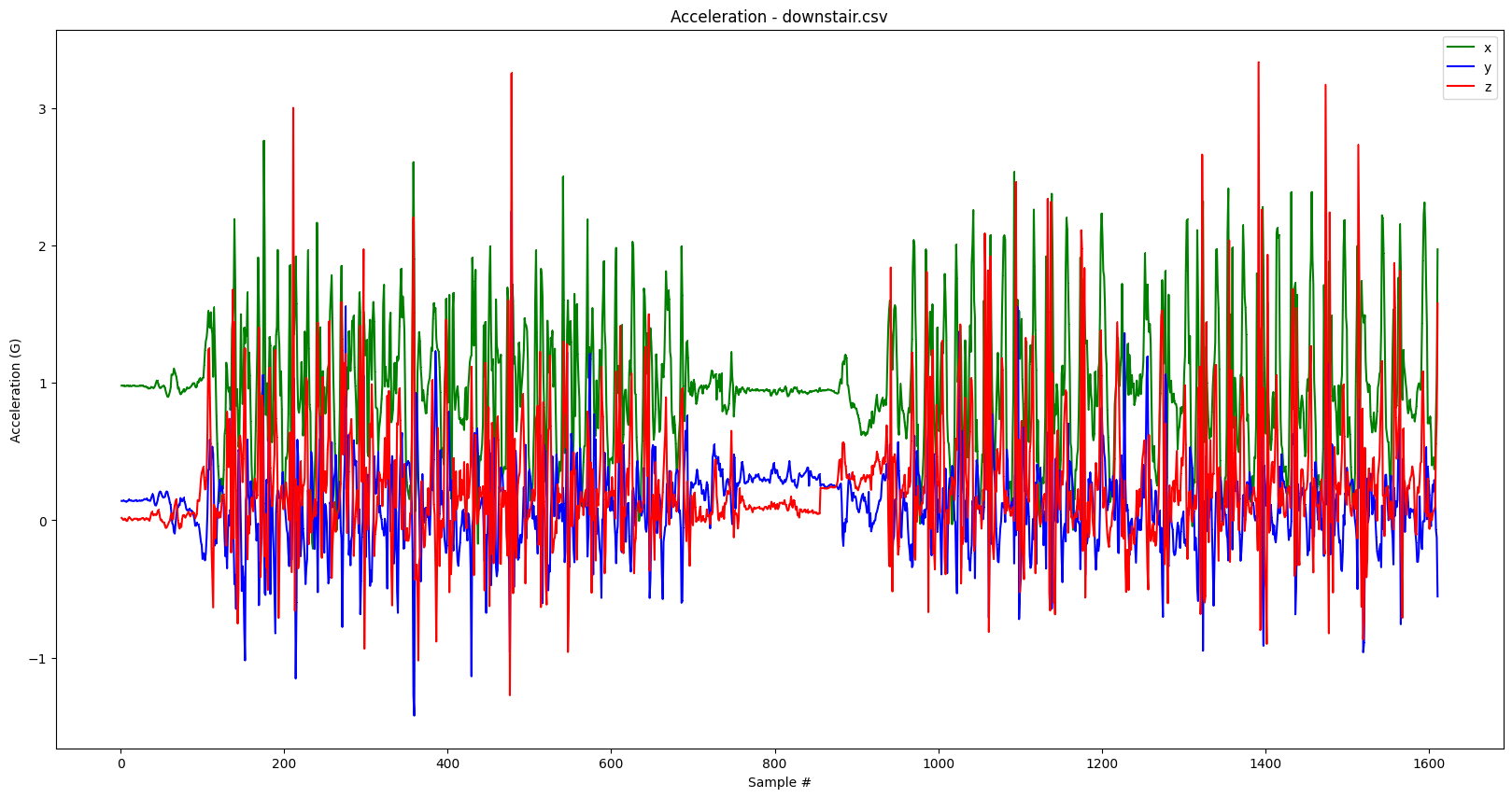

ds
Down Stairs Data Visualization
ds

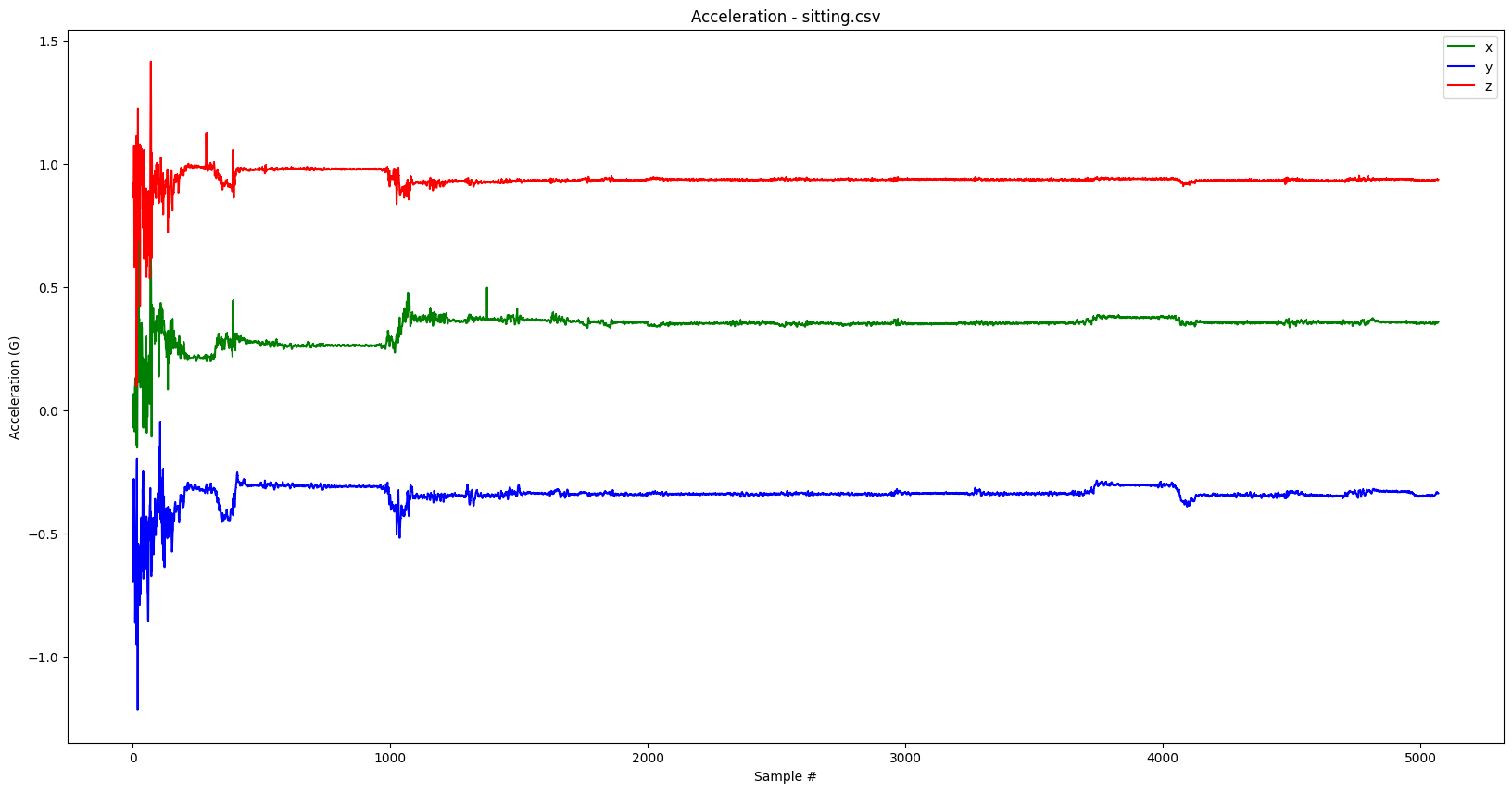

Sitting Data Visualization
ds

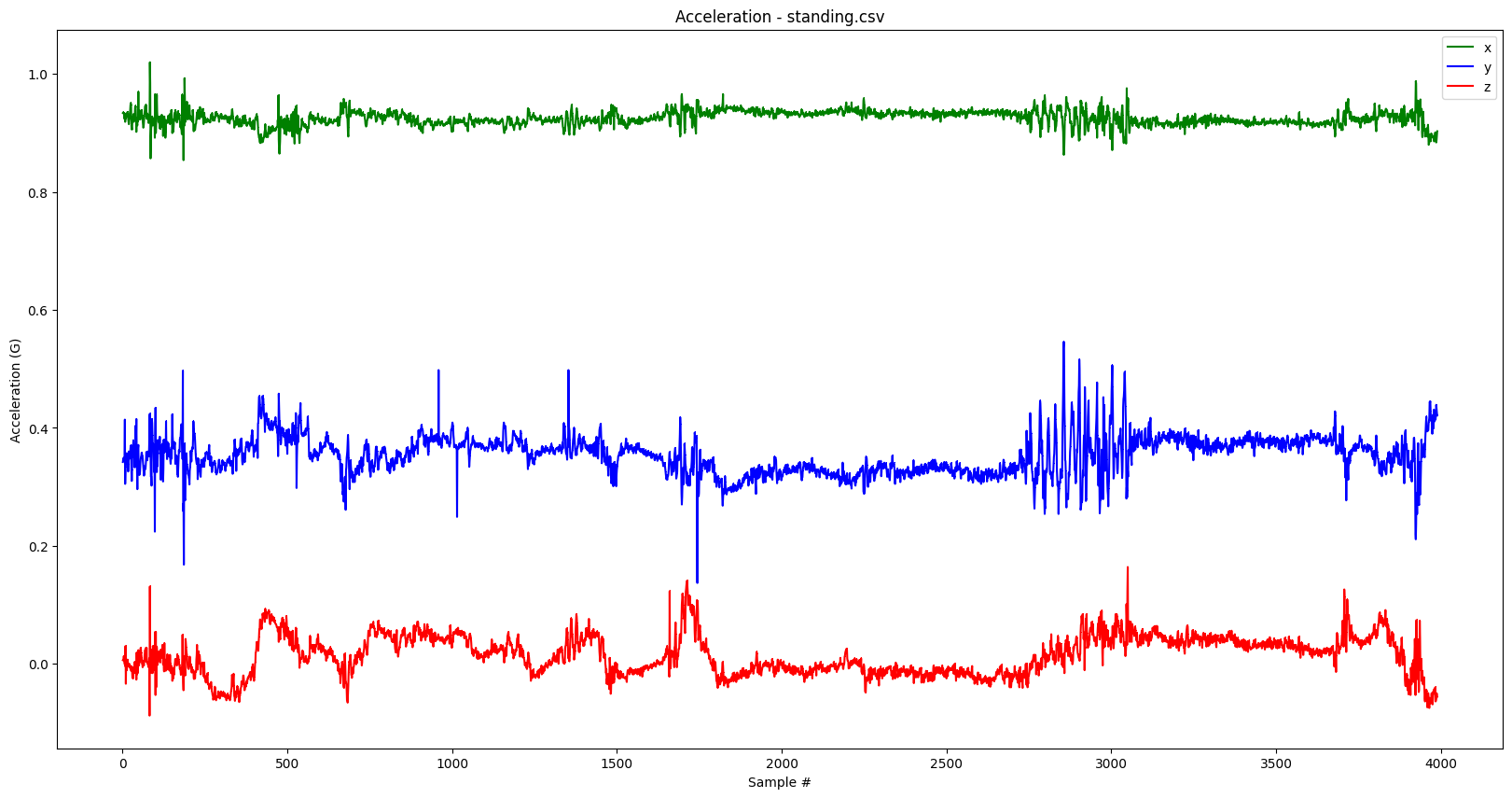

Standing Data Visualization
ds

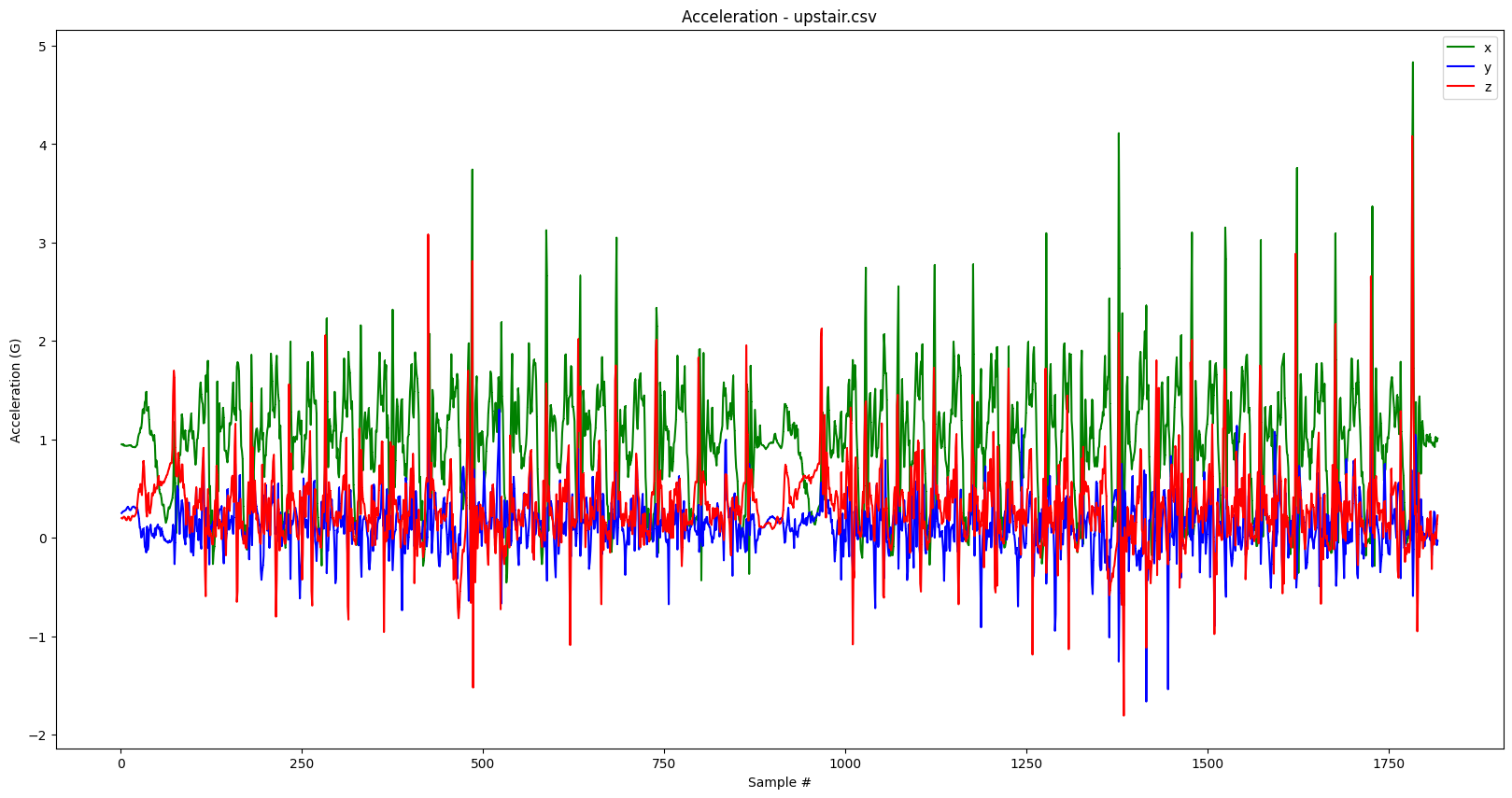

Up Stairs Data Visualization

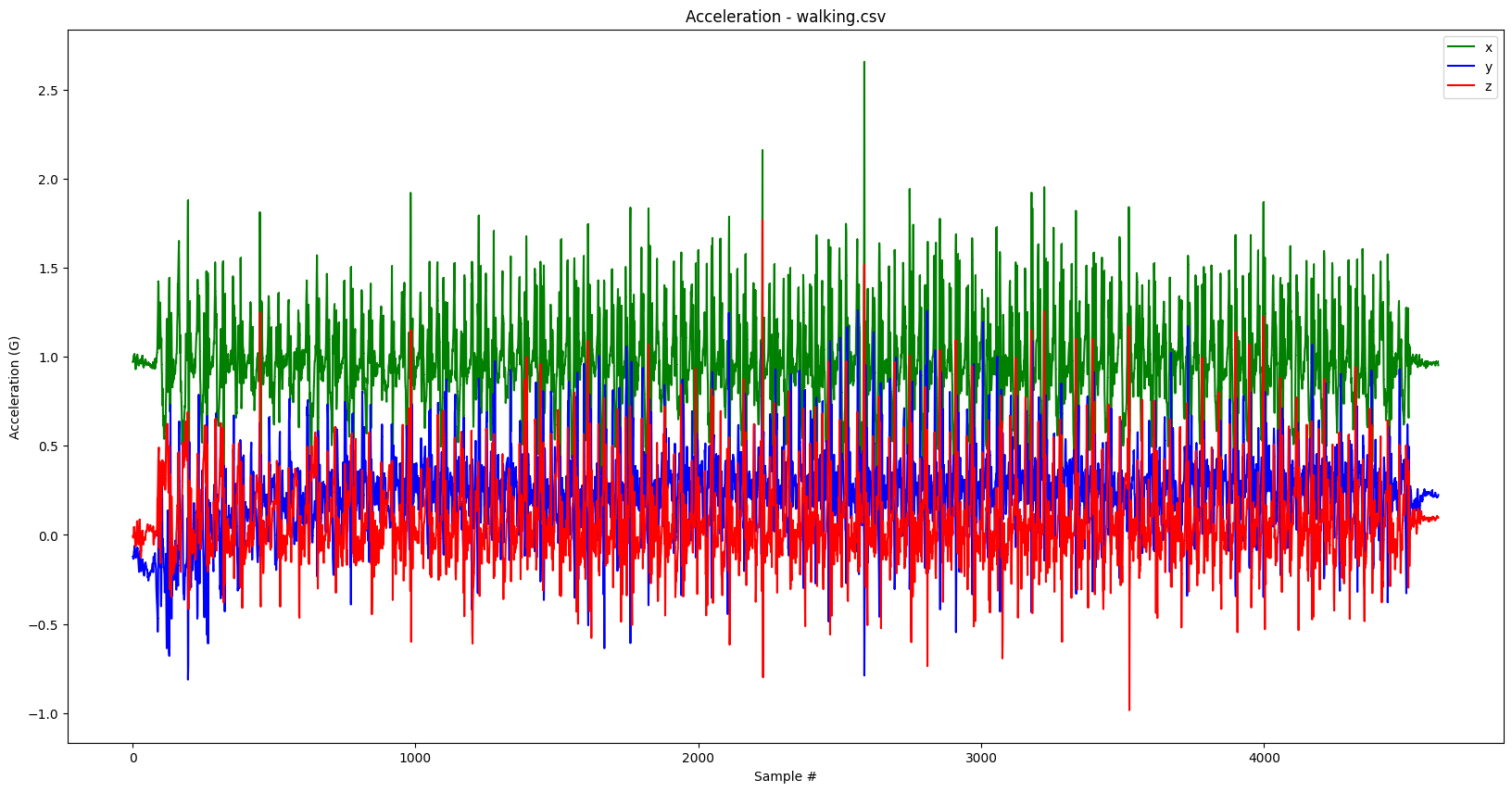

ds
Walking Data Visualization

As well as their prediction result as below.

ds
Go down stair prediction
sit
Sitting prediction
stand
Standing prediction
us
Go up stair prediction
walk
Walking prediction

It can be see that for walking and standing, they are very easy to be confused with up stair and down stair due to their similarity. The result for walking and standing are blured because other action typically involves part of walking or standing. For sitting, the cofidence level is very high because it is the one action that have clearly different compare to others. For up and down stairs, it is also kind of not perfect due to the similarity among other actions.
